Project Description
Machine Photo
Machine Features
1. CNC plasma cutter structure with light weight, exercise inertia and low cost.
2. Gantry-type structure, Y-axis synchronous dual-motor drive and XYZ axis with circular rail ,stable transmission, high accuracy.
3. Startfire control system professinal for plasma cutting machine with automatic arc, stable performance, can make 99% successfuly arc.
4. Support many CAD/CAM soaftware such as Artcut, ARTCAM, Type3 software to make G code path, file can also be read by software conversion software such ad AUTOCAD generated DXF formats. U disk exchange control system processing files, easy to operate.
5. Plasma torch and power supply are all famous brand, high quality and superior cutting accuracy.
Technical Parameters
| Effective Cutting Width (X axis) | 1300mm |
| Effective Cutting Length (Y axis) | 2500mm |
| Drive Mode | Leadshine |
| Guide Rail | Taiwan inported Hiwin Square rail |
| File transmission | USB transmission |
| Cutting shape | Able to program and cut the steel plate parts with any plane shapes formed by straight lines and arcs; |
| Software | Fastcam Software |
| Plasma power source | Huayuan 63A 100A 120A 160A 200A Hypertherm 45A 65A 85A 105A 125A 200A |
| Cutting thickness | According to the plasma power source |
| Height regulating device | Arc voltage height |
| Cutting speed | 0-10000mm/min |
| Cutting precision | ±0.3mm |
| Control ccuracy | ±0.01mm |
| Support software | Fastcam / Type3 / autocad / pro / CAXA etc. |
| Working Temperature | -5~60°CRelative Humidity, 0-95%. |
| Power Supply Voltage | 380V±20%(220V optional,but we need custom for you) |
| Packing Weight | 3900x2300x1750mm |
| Packing Size | 1500kg |
Machine Main Parts
Plasma Cutting Head
High precision cutting performance and cutting speed.
Beijing Starfire Controller System
It can insert USB file. And with independent THC function. It has many types of Languages for your option.
Taiwan Hiwin Guide Rail
Open the drawer and take cutting waste and small cutting pieces, you can clean machine easily and save more time.
Shenchen HYD THC ( Torch Height Control )
The torch can up and down automatically, even if the sheet is not flat, the torch will not collide it, so the cutting torch is protected and cutting performance is better.
FastCAM Software
After nesting your drawing by FASTCAM nesting software, it can make your cutting sheet in biggest usage, it can reduce waste and save cost.

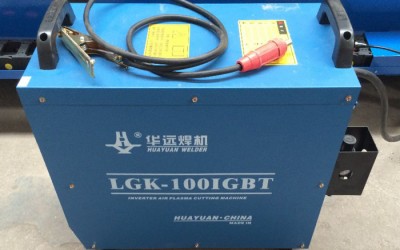

Huayuan LGK-100A
Cutting 0.3–15mm carbon steel,aluminum,6mm copper,7.5mm ss.
Working Samples
