1530 Heavy Duty CNC Plasma Cutting Machine

Machine Features

1. The frames adopt all-welded structure, and tit is firm, reasonable, simple and durable.

2. Fast cutting speed, high precision, small cut mouth, neat, no slag. With the basis of the traditional numerical control system, the control mode of cutting is improved to avoid the second finishing.

3. Suitable metal plate with low carbon steel plate, copper plate, iron plate, aluminum plate, galvanized plate, titanium plate, etc.

4. High configuration of CNC system, automatic arc ignition, stable performance, the above 99% success rate of striking the arc.

5. Supporting the standard G code path file that is generated by software, such as Artcut, Artcam and Type3. The control system adopts U disk to exchange processing files and operates easily.

Machine Parameters

Machine ModelKB-1530
Working Area(X/Y/Z)1500*3000*120mm
Working precision0.05mm
Cutting Thickness0.1-30mm (According to the cutting thickness)
Cutting Speed0-8m/min
Moving Speed0-50m/min
Control SystemSTART/STARFIRE/DSP Control
Working current100A ( LGK-100A)
Optional Power63A/100A/120A//160A/200A
Cutting accuracy0.1mm
Power8.5KW-10.5KW
Command CodeG Code (*.nc, *.mmg, *.u00, etc.), *.eng
Input Voltage3 phase 380V/ 2phase 220V
Power Frequency50HZ/60HZ
Files TransferUSB Interface
ArcUntouched Arc Striking Arc Pressure Adjuster
SoftwareArtcam/Type 3/Ucancam/Fastcam

Machine Application

CNC plasma cutting machine widely used in industry such as machinery, automobile, shipbuilding, petro-chemical, war industry, metallurgy, aerospace, boiler and pressure vessel, locomotive etc.

It is suitable for kinds of metal materials such as steel, copper, aluminum and stainless steel can be processed. Applies for aluminum plate, stainless steel, galvanized sheet, white Steel plate, Titanium plates, and so on like the sheet metal.

Machine Main Parts

Plasma Cutting Head

Plasma Cutting Head

High precision cutting performance and cutting speed.

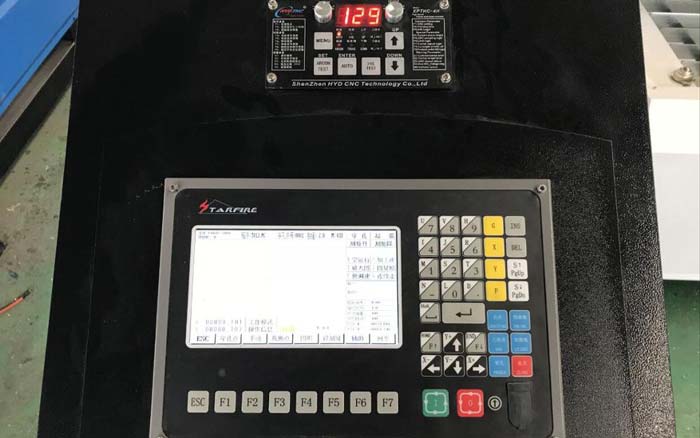

Startfire Contol System

Startfire Contol System

Chinese / English / Russian / Spanish / French / Czech / Japanese / Slovakian and other language version are optional, no need worry about machine operation.

Drawer for Collecting Cutting Waste

Machine Drawer

Open the drawer and take cutting rubbish and small cutting pieces, instead of open the cutting table blade every time, so you can clean machine easily and save more time.

Dust Cover

Dust Cover

Machine three axis with dust cover, it can cover the machine guide rails, and keep clean working environment so as to ensure the cutting precision.

Taiwan Hiwin Guide Rail and Germany Helical Gear Rack

Taiwan Hiwin Guide Rail

Square rail to make machine higher precision faster cutting speed, more better cutting performance.

Hypetherm 105A Power Source

Hypetherm 105A Power Source

USA Hypertherm 105A power source can cut less than 22mm sheet, its cutting thickness same as China HUAYUAN 160A power source.

Working Samples

1530 Heavy Duty CNC Plasma Cutting Machine Working Samples
1530 Heavy Duty CNC Plasma Cutting Machine Working Samples
