Project Description
Fiber Laser Cutting Machine Photo
![500W1000W Fiber Laser Cutting Machine 500W / 1000W Fiber Laser Cutting Machine](https://www.kingbeckcnc.com/wp-content/uploads/2018/09/500W-1000W-Fiber-Laser-Cutting-Machine.jpg)
Fiber Laser Stainless Steel Cutter Features
1. Excellent Path Quality: Smaller laser dot and high work efficiency, high quality.
2. High Cutting Speed: cutting speed is up to 80m/min with appearance and beautiful cutting edge,it is 2-3 times faster than same power CO2 laser cutting machine.
3. Stable Running: adopt top world brand fiber lasers, stable performance, life service time is more than 100,000 hours
4. High Efficiency for photoelectric conversion: Compare with CO2 laser cutting machine, fiber laser cutting machine have three times photoelectric conversion efficiency.
5. Low Cost: Save energy and protect environment. Photoelectric conversion rate is up to 25-30%. Low electric power consumption, it is only about 20%-30% of traditional CO2 laser cutting machine.
6. Low Maintenance: fiber line transmission no need reflect lens, saving maintenance cost;
7. Easy Operations: fiber line transmission, no adjustment of optical path.
Fiber Laser Cutter Machine Parameters
Model | KB-3015FL |
Working area | 1500*3000mm |
Laser power | Raycus 750w |
(can cut max 4mm stainless steel and 10mm carbon steel ) | |
Working table | Sawtooth work table |
Control system | PC control with Cypcut |
Drive system | Japan servo motor and drivers |

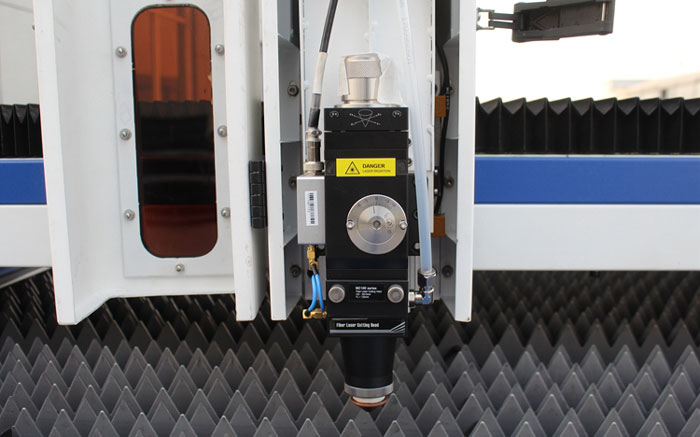

Laser head | Worthing following laser head |
Guide rail | Hiwin Linear rail guide from Taiwan |
Transmission | XY by gear, Z by ball screw |
Cooling chiller | S&A CW6100 water cooling system |
Min line width | ≤0.02mm |
Position accuracy | 0.01mm |
Cutting speed | 50-60m/min |
Control software | Coreldraw, Photoshop, AutoCAD, etc |
Graphic format support | PLT, DXF, BMP, JPG ,AI ,ect |
Working environment | 0-45℃, |
Operating Humidity | 5-95% |
Fiber Laser Cutting Machine Application
♦ Applicable Fields
Applicable for high-speed cutting on various metal plates or tubes such as S/S, carbon steel, galvanized sheet,electrolytic plate, aluminum plate, steel, brass, alloy plate, rare metals and other materials
♦ Widely Used
Widely used in kitchen appliance, electric control box, high-resolute device, mechanical equipment, electrical equipment, lighting, posters, auto parts, display equipment, hardware and metal processing.
Fiber Laser Cutting Machine Main Parts
![TOP Brand Cypcut Control System TOP Brand Cypcut Control System](https://www.kingbeckcnc.com/wp-content/uploads/2018/09/TOP-brand-Cypcut-Control-System-400x250.jpg)
TOP Brand Cypcut Control System
![Japan Yaskawa Servo Motors TOP Brand Cypcut Control System](https://www.kingbeckcnc.com/wp-content/uploads/2018/09/Japan-Yaskawa-Servo-Motors-1.jpg)
Japan Yaskawa Servo Motors
![Top Brand Raycus Laser Generator TOP Brand Cypcut Control System](https://www.kingbeckcnc.com/wp-content/uploads/2018/09/Top-Brand-Raycus-Laser-Generator.jpg)
Top Brand Raycus Laser Generator
Fiber Laser Cutting Macine Working Samples
![500W / 1000W Fiber Laser Cutting Machine Working Samples 500W / 1000W Fiber Laser Cutting Machine Working Samples](https://www.kingbeckcnc.com/wp-content/uploads/2018/09/Fiber-Laser-Cutting-Machine-Working-Samples-800x890.jpg)
