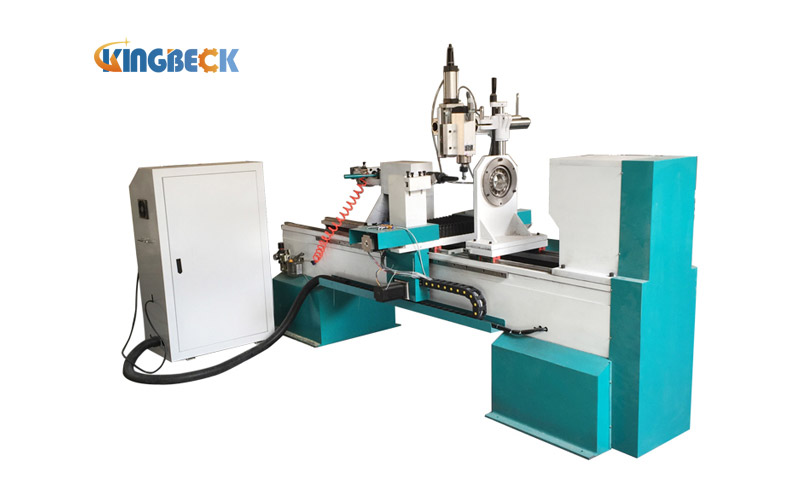

What is CNC Wood Lathe?

CNC wood turning lathe is a CNC wood lathe that is suitable for processing work pieces with large diameter and short length. It can process hardwood and softwood pasted wood with high speed steel or carbide cutter. Wood CNC lathe can finish rough and fine turning such as outer circle, inner hole, end face, cone surface, groove cutting and cutting. The CNC wood lathe is mainly used for processing handicrafts such as pillar, wooden bowl and pen cylinder, and other work pieces with rotating surface.

The performance of CNC wood turning lathe is outstanding, it can work more than 24 hours one time without stopping. But the premise is must carry on the maintenance in time according to the instruction. In addition, the machining and feeding amount of rough turning tool can reach 3 pieces. The optimal design of the transmission system greatly reduces the failure rate of the machine tool, while the specially treated gear system can transfer more damping torque to each shaft, making the shaft stress, and thereby protecting the gear rack.

CNC Wood Lathe Application

Stair railing, stairway balusters, stairway newel posts, wooden bowl making, dining table legs, end table legs; sofa table legs, bar stool legs, chair legs, chair arm posts, chair stretchers, bed rails, lamp posts, baseball bats and so on.

CNC Wood Lathe Details

CNC Wood Turning Lathe Details

CNC Wood Lathe Parameters

Standard Working Size1500*300,1500*160,1500*400,2000*300,2000*400( mm)
Max Processing Length1500mm/2500mm/3000mm
Max Turning Diameter300mm/400mm/160mm
Spindle Power3.5KW Air Cooling Spindle
Air Pressure0.6-0.8Mpa
Power SupplyAC 380V 3 phase 50HZ/60HZ / 220v
Max Feed Rate200cm/min
Min Setting Unit0.01cm
Transmission TypeBallscrew for X,Z axis, Gear Rack for Y axis
Guide RailTaiwan HIWIN Square Guide
Main Shaft Rotating Speed0-3000r/min
Control SystemDSP Handle control
Drawing SoftwareAutoCAD
Hand Controller Recognise File*.dxf
