1325 Wood CNC Router With Rotary
1325 Wood CNC Router With Rotary
1325 Wood CNC Router With Rotary
1325 Wood CNC Router With Rotary

Machine Features

1. Thicken welded steel tubes, the thickness is at the top of cnc router industry in China. The 4 X8 cnc router is the basic size, also available size of 5 X 10 cnc router, 6 X 10 cnc router etc size.
2. 3.0kw or more power HSD spindle or water cooling type. This one is with no maintenance, 18000-24000rpm.
3. The gantry is constructed of tubular steel with reinforcing ribs welded throughout the length of the column which results in a steady firm beam assembly. This quality engineering and workmanship result in smooth precision cutting.
4. Taiwan rail linear bearing ,double slippers,bearing heavy,working steadily.
5. Stepper motors are motion systems allowing to have a high positioning precision. With their high power already at low speed, their stall torque and the possibility to divide the steps in microsteps, stepper motors can provide direct and precise motions in a small volume.
Rotary Device

A rotary device includes a fixed body and a shaft. as 4th axis of CNC router, it could work instead of X or Y axis for column Processing, such as chair jamb, stair jamb, roman column, pillar etc.

The column diameter it fixes could be from 10mm to 400mm, material could be wood, marble, foam etc.

Machine Application

1. Furniture industries: cabinet doors, wooden doors, solid woods, plates, antique furniture, doors, windows, desks and chairs.

2. Decoration industries: screens, wave boards, large-size wall hangings, advertising boards and sign making.

3. Arts & Crafts industries: Engrave on artificial stones, woods, MDF sheet, bamboos, marbles, organic boards, double-color boards and so on for achieving effects of exquisite patterns and characters.

4. Decoration industries: engraving, milling and cutting processing for acrylic, PVC, density boards, artificial stones, organic glass, plastics and soft metal sheets such as copper and aluminum.

Technical Parameters

ModelKB-1325R ( KB-1530R,KB-2030R is optional )
Working Area1300x2500x200mm
Table Size1450x2940mm
Machine structureWelded Steel square tube
Traveling Positioning Accuracy±0.03/300mm
Repositioning Accuracy±0.03mm
Table SurfaceVacuum table+5.5kw vacuum pump
X, Y StructureRack and Pinion Drive, Hiwin Rail Linear Bearings
Z StructureHiwin Rail Linear Bearings and Ball Screw
Max. Power Consumption (Without spindle)3.0KW
Max. Rapid Travel Rate33000mm/min
Max. Working Speed2500mm/min
Spindle Power Motor3KW (4.5kw /5.5kw optional)
Spindle Speed0-24000RPM
Drive MotorsStepper or Servo motor
Working VoltageAC380V/50/60Hz,3PH (Option: 220V)
Command LanguageG code
Operating SystemDSP / NC studio
Computer InterfaceUSB
Software CompatibilityType3 / Ucancam / Artcam
Running Environment Temperature0°C~45°C
Relative humidity30%~75%

Machine Main Parts

Rotary diameter can be made by 8 cm – 30 cm. You can choose the one depends on the cylinder workpiece diameter, if you just make flat material processing, then just close this extra rotary axis.

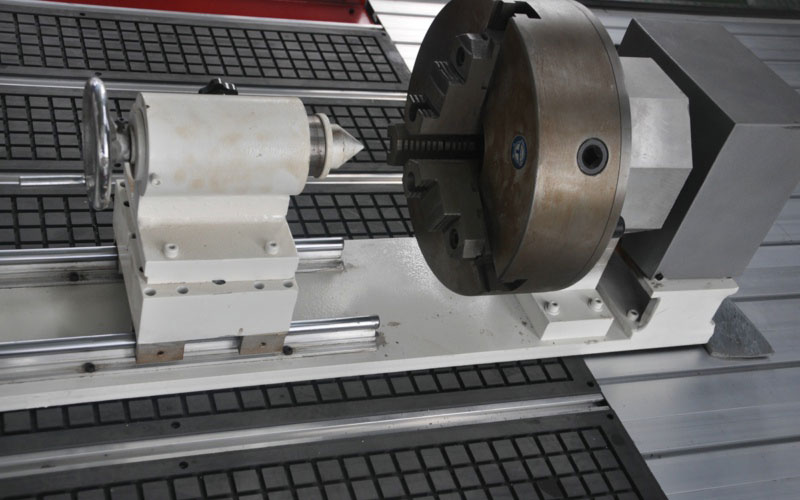

Wood CNC Router with Rotary Parts

20cm rotary device can be adjust from 0-20cm diameter

Wood CNC Router with Rotary Parts

30cm rotary device , can be adjust from 0-30cm diameter

Working Samples

1325 Wood CNC Router with Rotary Working Samples
1325 Wood CNC Router with Rotary Working Samples

1325 Wood CNC Router Video
