4040 Small 5 Axis CNC Router

Machine Features

1. Guided by computer-aided design (CAD) system to achieve machines’ optimum structural design. Machine adopts reinforcing aluminum alloy construction, box structure and thick-walled. Strengthening ribs are welded inside. These make machine have excellent rigidity.

2. Equipped with high-level precision box structure. High speed AC servo motors ensure machine having good stability during working with high speed.

3. X, Y, Z adopt high precision ball screw direct drive mode, suitable for high precision strong cutting.

4. With high performance, high reliability and high speed Mach 3 CNC controller, the processing speed is fast and the efficiency is high.

5. Dynamic graphic tool path display, intelligent warning display and self-diagnosis function make operation and maintenance easy. Multi read-ahead control is particularly suitable for high speed and large capacity program tooling and demonstration.

6. The operation interface is designed according to human visual sense system, which makes people’s visual sense to reach the most comfortable state. Portable hand-held remote control unit greatly facilitates tool setting, test cutting, processing and security.

7. Key parts are measured by three coordinate measuring detection and United Kingdom RENISHAW dual-frequency Laser Interferometer, test them thoroughly to ensure that geometric precision and accuracy.

Technical Parameters

XYZ working area400mm*400mm*720mm
Work piece Diameter0-200mm
Work piece height380-600mm
A axis±120°
C axis±360°
Working tableIron cast T-solt work table (move table)
Lathe StructureSeamless welded steel structure
X,Y StructureRack and pinion transmission, Taiwan Hiwin square Guide rail
Z StructureTaiwan TBI Ball screw, Taiwan Hiwin square Guide rail
Spindle2.2kw Jingong constant power water cooling spindle (Italy HSD spindle optional)
Spindle Speeder0-18000rpm
Max idle spindle10000mm/min
Invert3.7kw Delt
ReducerJapan high quality reducer
Limit switchSwitzerland Corey
Diameter of cutterφ3.175-φ12.7mm
Drive MotorJapan YASKWA servo motor
DriverJapan YASKWA servo driver
Control SystemGermany PA 5 axis control system
Working VoltageAC220V / 3 phase (Optional: 380V)
CommandG code (HPGL, U00, mmg, plt)
SoftwareArtcam / CAD / CAM / Type 3 / UG

Machine Application

Most suitable for crafts and smart mold Sculpture, valves, cam, mold and plate disc type and tank shells and other types of non-metallic parts of milling, drilling, boring, especially suitable for a variety of complex shape two or three dimensional convex model and complex cavities and surfaces, and also sculpture industry.

Machine Details

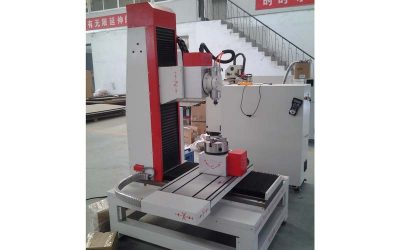

4040 Small 5 Axis CNC Router Machine Details
4040 Small 5 Axis CNC Router Machine Details
4040 Small 5 Axis CNC Router Machine Details
4040 Small 5 Axis CNC Router Machine Details

Working Samples

4040 Small 5 Axis CNC Router Working Samples

4040 Small 5 Axis CNC Router Video
