ATC CNC Woodworking Lathe

Machine Features

1. Maximum working length is 1500mm, Max.turning diameter is 30

2. The Machine has 2cutters at two sides of the machine and cut at the same time, improve the efficiency greatly.

3. Taiwan PMI guiderail, Germany ball screw,high precision and durable.

4. Heavy Cast iron lathe bed. avoid shaking when the spindle rotates fast or the big sizes workpiece process, and the main spindle speed can be adjusted through the frequency converter.

5. Easy operation, we can draw by autoCAD and other softwares, transfer the files to machine by a USB.

6. The machine with auto knife change table, it can change the knife according to different work automatically.

7. DSP control system, easy to operate.

8. It can choose to install spindle for grooving, slotting,etc.

Machine Parameters

Machine ModelKB1530
Max Turning Length100-300mm or option
Max Turning Diameter300mm
Number Of Axis2 axis 2 blade/1 axis 2 blade
Auto Knife TableMax equipped with 4 Knifes
Maximum Setting Unit0.01cm
Spindle Motor Power4.0KW
Air Pressure0.6-0.8Mpa
Power SupplyAC380V/50HZ or 220V/50HZ or option
Overall Dimensions300*110*170cm
Gross Weight1600kgs

Machine Main Parts

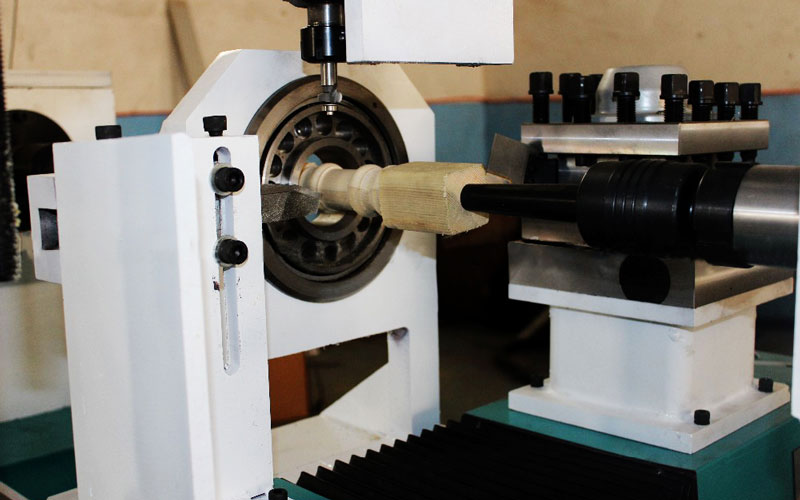

two cutters

With two cutters, can make cutting together at the same time

Auto knife change table

With auto knife change table, can change knife automatically according to different working command

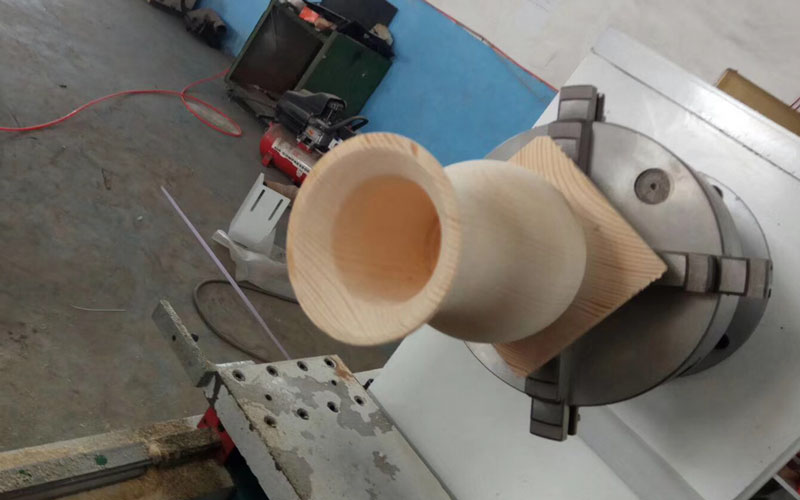

4 claws rotary device

With 4 claws rotary device, can fix the work piece well

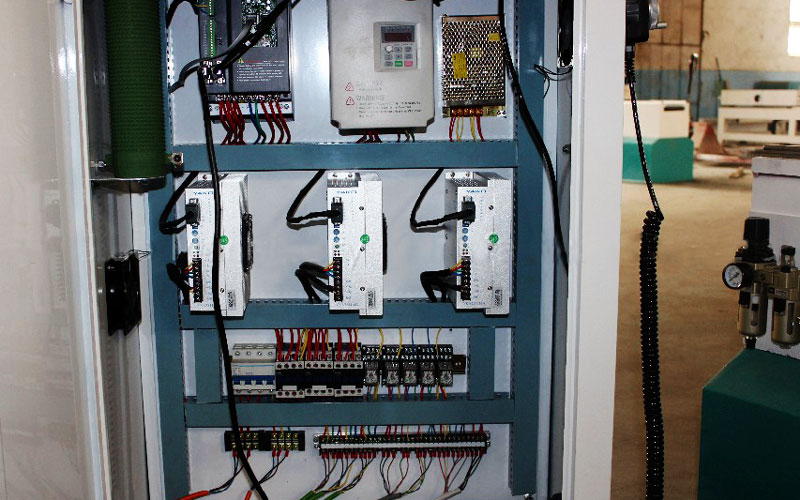

Machine control cabinet

Machine control cabinet with Taiwan Yako drivers and top brand Fuling inverter

Machine Applications

Wooden handles; baseball bats; staircases, stairway balusters, stairway newel posts; dining table legs; end table legs; sofa table legs; bar stool legs; chair legs; chair arm posts; chair stretchers; sofa and bun feet; bed rails; lamp posts and so on.

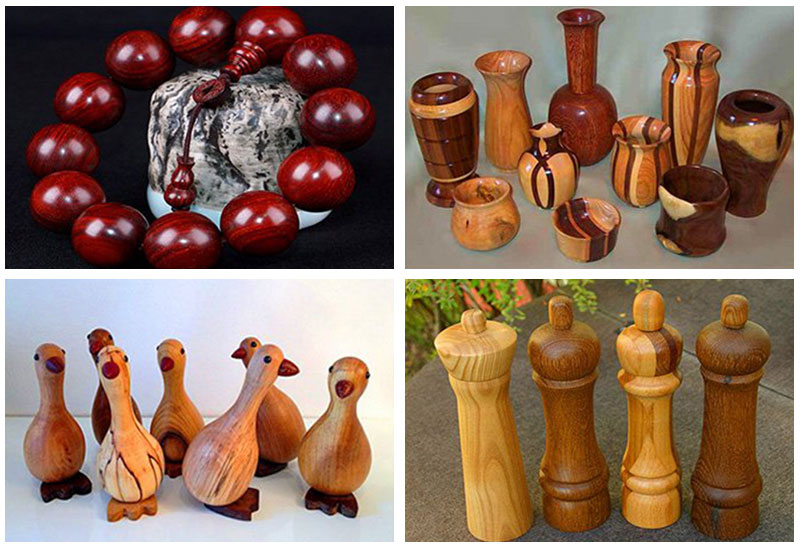

ATC CNC Woodworking Lathe Applications

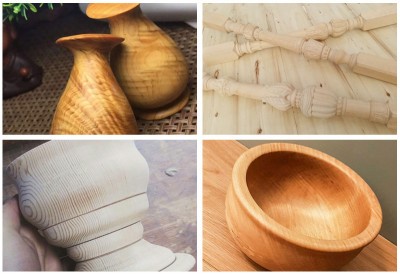

ATC CNC Woodworking Lathe Applications
