CNC Stone Carving Machine with Rotary Manufacturer

Machine Photo

1. Steel tube welding machine bed , low center of gravity,strong bearing capacity,not easy to deformation,stable and reliable operation.

2. Ncstudio control system by PC,easy and simple to operate, DSP handle offline control is optional.

3. Taiwan Hiwin linear guide rail and sliding block ensure high stable working .

4. Break point and break knife continue engraving function, can engrave at any place as you like.

5. Compatible with various CAD/CAM software like Type3 / artcam / castmate / proe / Corelerow / Wentai.

6. Rack and pinion transmission for X Y-axis, ball screw transmission for Z-axis, ensuring the Machine fast speed and higher precision.

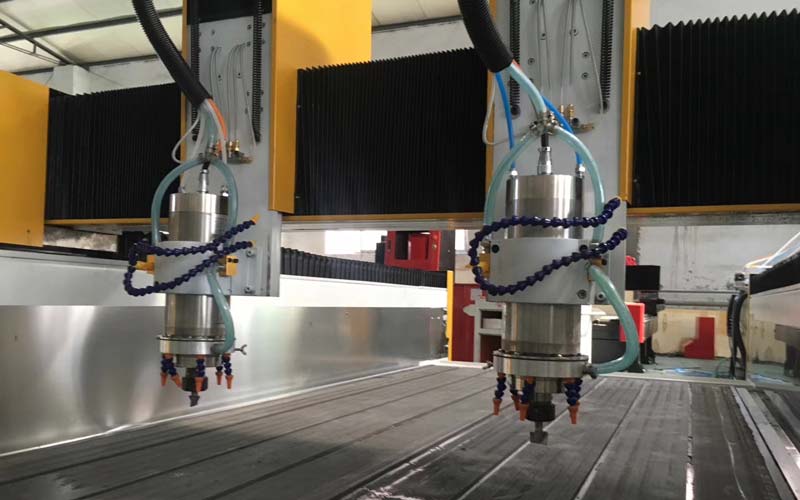

7. 5.5KW China water cooling spindle, more powerful and not easy to break tools.

8. Dust proof and water proof system design, better to protect the machine driving part.

X,Y,Z Working Area	13002500300mm
X,Y,Z Traveling Positioning Accuracy	±0.05mm
X,Y,Z Repositioning Accuracy	±0.05mm
Table Surface	Aluminum T-slot Table
Machine Frame	Square tube Welded Structure
X, Y axis transmission	Rack and Pinion gear
Z axis transmission	Ball Screw
Max. Traveling speed	25000 mm/min
Max. Working speed	15000 mm/min
Rail Configuration	20 square rail
Spindle Power	Water-cooling 5.5kw (Opitioinal 3.0 / 4.5 / 7.5kw) spindle
Spindle Rotating Speed	0-24000RPM
Drive Motors	Stepper System (Opitional Yaskawa / Panasonic Servo motors)
Working Voltage	AC380V / 50Hz / 3PH
Operating System	Ncstudio system (Option: DSP)
Command Language	G code, u00, mmg, PLT, HPG
Software Compatibility	Type3, Wentai, Artcut
Packing	Wooden case
G.W.	2200KG

Marble, granite, standstone, glass, artificialstone, headstone, tablet, such as ceramic engraving and cutting material.

Can process two workpieces at same time.

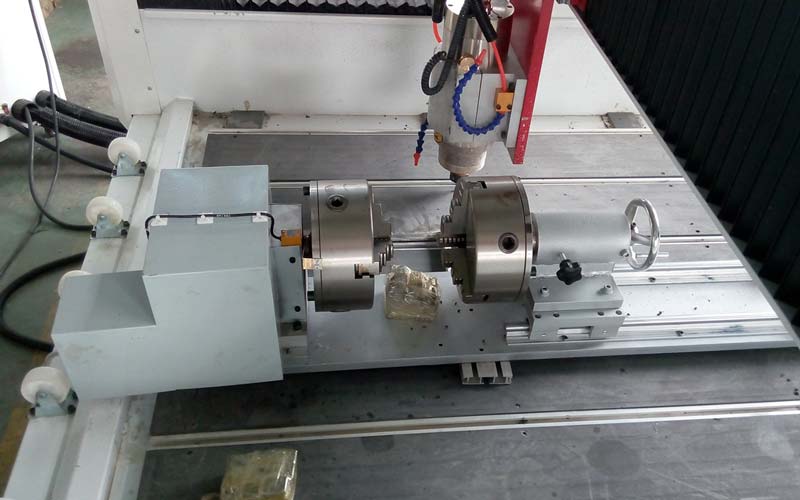

Diameter is optional according to your request.
