CNC Wood Turning Lathe for Stair Railing Making
CNC Wood Turning Lathe Details

CNC wood turning lathe is a device that can create items such as stairway posts, designs on wood and more. A CNC wood lathe is operated by a computer which is controlled by the user. The use of computers on a lathe machine offers a wide range of benefits and features, while improving functionality. Lathe machine is designed for cylindrical or conoid workpieces, for example, pillar, banister, chair legs, etc.

Features

  1. Whole machine is welded with seamless steel structure, which is high temperature annealing and vibrating stress relief, machine weight up to 1500kgs to make sure the lathe body stabilized and never deformed.
  2. Special used for wood turning and wooden cylinder engraving, for table legs, stair railing (banisters), etc.
  3. Adopting advanced handheld DSP system with USB port which is easy for operating even without a computer.
  4. Adopt Germany ball screw and Taiwan HIWIN helical square guide rail with high precision and longevity.
  5. Compatible with several CAD/CAM design software, e.g. type3, artcam, etc.
  6. Rotating speed can be adjusted by inverter also you can see speed on control cabinet.
  7. One time tool setting to finish the whole work piece.
  8. Turning, broaching and engraving can be done with one machine by high speed.

Technical Parameters

Machine ModelKB-1530
Max processing length1500mm(can custom 2000/2500/3000mm)
Max turning diameter300mm
Air pressure0.6-0.8Mpa
Power supplyAC 380V 3 phase 50HZ/60HZ(can custom 220V)
Max feed rate200cm/min
Min setting unit0.01cm
Transimission typeballscrew for X,Z axis,gear for Y axis
GuiderTaiwan Hiwin orbit
Main shaft rotating speed0-3000r/min
Spindle power3.5kw
Cutter materialSuper hard alloy
Control SystemDSP control system
MotorStepper motor
DriverYako driver
InverterBest inverter
Drawing SoftwareAutoCAD
Hand controller recognise file*.dxf

Application

  • Mould: wood, wax, wood, gypsum, foams.
  • Furniture: dining table legs; end table legs; sofa table legs; bar stool legs; chair legs; chair arm posts; chair stretchers; bed rails; lamp posts; baseball bats ,wood crafts
  • The wood products: voice box, game cabinets, computer tables, sewing machines table, instruments.

Machine Main Parts

Adjustable Bracket Center Sheath

Adjustable Bracket Center Sheath

Can adjust the workpiece automatically according to the diameter of material.

Japan Yaskawa Servo Motors

Japan Yaskawa Servo Motors

Little noisy, high working speed.

Double Cutters

Double Cutters

Little noisy, high working speed.

3.5KW Air Cooling Spindle

3.5KW Air Cooling Spindle

Little noisy, high working speed.

Working Samples

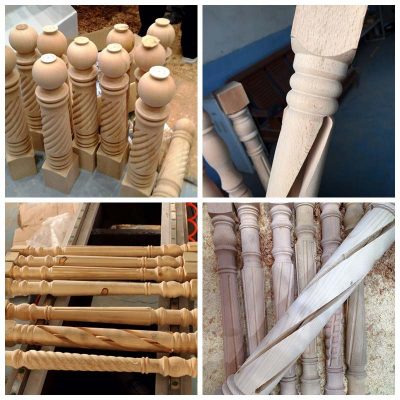

CNC Wood Turning Lathe for Stair Railing Making Working Samples
