CO2 Laser Marking Machine
CO2 Laser Marking Machine

Machine Features

1. It seldom has a screw loose and its life span is as long as 10000 hours; the cost of use and maintenance is very low; it can keep on working for a long time.

2. The software has strong compatibility.

3. It can even the figures, laminate set up parameters and preview the place of infrared light.

4. The software controlling system has the interface of WINDOWS, which is compatible with files output by software such as CORELDRAW, AUTOCAD, PHOTOSHOP etc;

5. It can support graphic file formats such as PLT, PCX, DXF, BMP etc; and directly use fonts such as SHX, TTF.

Machine Parameters

Laser  PowerReci brand 60w/80W/130-150W
Working  Area110*110mm/300*300mm option
Cooling ModeWater Cooling
Laser Wavelength10.64um
Response Time0.5ms
Frequency of pulse20-100KHz
Marking Depth≤0.4mm
Marking Speed≤8000mm/s
Marking Lines1-10 lines
Minimum Line Width0.01mm
Minimum Character0.15mm
Repeatability Accuracy±0.002mm
Resolution Ratio0.1mm
Marking ContentText, pattern, date, bar code, etc
Operation SystemMicrosoft Windows XP or Windows 2000
Control SoftwareEZCAD Control Software
Graphic Format SupportedBMP, JPG, GIF, TGA, Ai, DXF, PLT, PNG, TIF, ai, DXF, DST, etc.
Unit Power≤1.2KW
Operation Temperature5°C-40°C
Relative Moisture≤ 90%, no fog
Supply Voltage220V/50Hz/10A

Machine Application

It is mainly used for nonmetal material, it can suitable for Craft gifts, leather garments, advertising signs, model making,food packaging, electronic components, pharmaceutical packaging, medicine packaging, printing plate, shell plate etc.

With Keyboard Laser marker,Glass laser marker, Arts laser marker, bath ware laser marker, building ceramics, beverage packaging, textile cutting, rubber products, shell plate, electronic components, leather and other industries.

Machine Main Parts

Reci Laser Tube 80W

Reci Laser Tube 80W

Scanning Head

Reci Laser Tube 80W

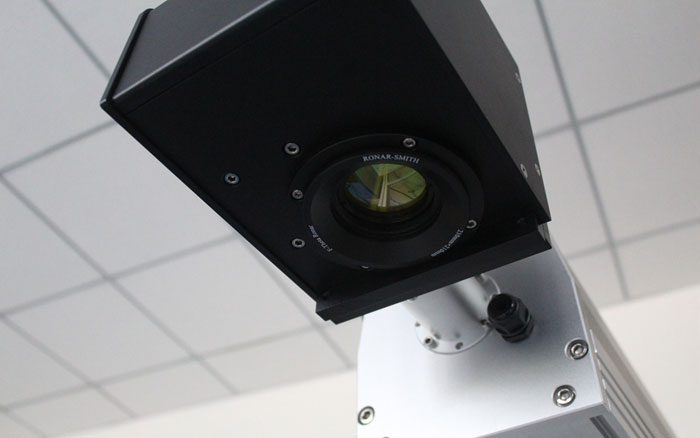

Field Lens

Field Lens

Control Switch Box

Control Switch Box

Working Samples

CO2 Laser Marking Machine Working Samples
