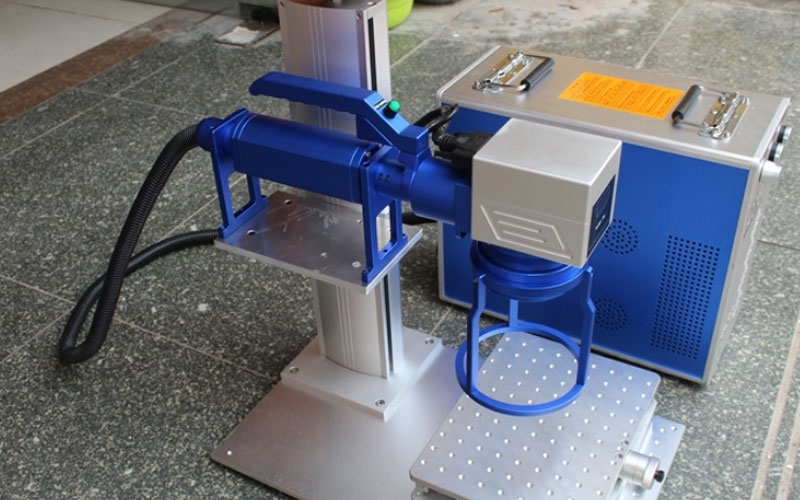

Handheld Laser Marking Machine

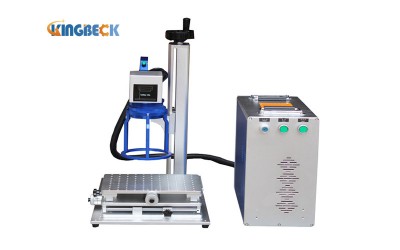

Handheld Laser Marking Machine

Machine Features

1. Separated design. The portable part can move according to diferernt marking demand and mark on big and heavy materials conveniently, no need to think about the size of working table.

2. With focal length adjustable protective covering, ensure marking accuracy. High quality laser path suitable for delicate marking.

3. High Speed: Imported scanning system makes the scanning speed is up to 7000mm/s.

4. Easy Operation: Along with the specific marking software based on Windows, You can input and output by computer according to edit in both of the specific marking software and the graphic software such as AutoCAD, CorelDRAW and Photoshop.

5. High pulse repeating rate and stable power bring higher speed laser marking. Unit pulse power surge is lower than 1%. Easy control laser dot size, thickness and shape.

6. Long lifetime. Ultralow power consumption of 0.5 kw. Efficiency conversion reach to over 30%, suitable for various fiber laser generators.

Machine Parameters

Laser GeneratorRaycus (optional Germany IPG or Britain SPI)
Laser Power10W / 20W / 30W / 50W
Laser Length1060nm
Quality of Lase Beamm2<1.5
Laser Repetition Frequency≤100 KHz
Standard Marking Area100×100mm
Optical Marking Area110*110mm / 200*200mm / 300*300mm
Marking Depth0-0.5mm
Marking Speed0-300mm/s
Minimum Line Width0.01mm
Minimum Character0.05mm
Resolution Ratio±0.001mm
Gross Power≤500W
Working Voltage200V / 50Hz / 1 Phase
Cooling ModeAir cooling

Machine Application

Handheld fiber laser marking machine is with a wide range of application, mainly for kinds of metal and most of plastic material marking, especially suitable for some fields required more precise and higher smoothness.

This portable model can be held to mark any position of big and heavy products which can not be moved easily. Especially suitable for hardware tools, kitchenware knifes, plastic products, metal jewelry, buttons, integrate circuits, frames, plumbing fittings and other products marking. Clear, beautiful and permanent marking.

Machine Details

laser marking machine

1. Galvanometer scanner: Form 2D scanning system with a beam expander.

2. High quality field lens: with the F-theta lens, laser beam transmits well and laser beam less losing.

3. Rotary device: specifically used for clylinder workpiece marking.

4. Raycus laser: Raycus brand fiber laser generator, Best quality in china .100 000 hours service lifetime.

5. Fiber Laser Source: A wide selectivity of operating wavelengths, ultra -low amplitude noise, high stability and ultra -long lifetime .and the start making, it is easy to handle.

6. Alluminum alloy up and down table: suitable for different material marking.

Working Samples

Handheld Laser Marking Machine Working Samples

Machine Package

Handheld Laser Marking Machine Package
