Metal and Nonmetal Laser Cutting Machine

Machine Features

1. Moved crossbeam with imported high precision ball screw and rail guide transmission makes
the stable driving and high precision work.

2. Machine frame, crossbeam and worktable adopt integral welding, in accordance with the standard large machine, to stress annealing after rough machining, and then vibration aging treatment, can completely eliminate the welding stress and processing. Can also keep high strength, high precision, and also keep the 20 years of normal use of deformation

3. X and Y axis equip with Japan servo motor, high precision, high speed, large torque, large inertia for a steady and durable work.

4. Use MPC6595 based on Windows operating system can perfect match the Laser cut 6.1, collect the function of read file, simple design, output, and processing control, a set of software which can complete the layout to the machining process, integrated with laser cutting control special function module which is powerful with a good man-machine interface and easy to operate.

Machine Parameters

ModelKB-FCL3015
Laser Power1000W fiber+150W CO2
Laser SourceRaycus + RECI
Working Area1300mm×2500mm
X axis Stroke1300mm
Y axis Stroke2500mm
Z axis Stroke100mm
Max. Cutting Thickness 6mm-12mm
Transmission MethodTaiwan TBI ballscrew transmission
Table-driven systemTaiwan Delta servo motor & driver
Focus MethodAuto following
Location precision≤±0.03mm
Max. moving speed30m/min
Supporting FormatPLT, DXF, BMP, AI
Power demand380V/50HZ or 220V/50HZ/60HZ
Machine dimension4160*2190*1980mm
Control systemAu3tech control system
Cooling systemS&A water chiller

Machine Application

Advertising industry, handicrafts, shoes, toys, computer embroidery cutting industry, garment model, construction industry, metal cutting, electrical switch manufacturing, elevator manufacturing, household appliances manufacturing, kitchen utensils manufacturing, tool processing, and other machinery manufacturing and processing industries.

Machine Main Parts

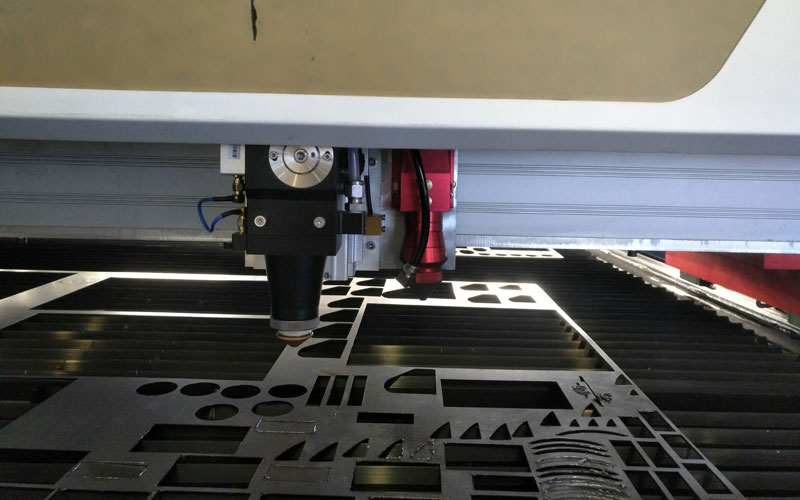

Raycus 500w fiber laser and Reci 150w CO2 laser power

Raycus 500w Fiber Laser and Reci 150w CO2 Laser Power

KB-FCL3015 laser cutting machine with two laser cutting heads for both metal and non-metal material cutting, Can cutting metal and non metal material by one machine, save cost and more convenient.

Imported Japan Yaskawa servo drivers

Imported Japan Yaskawa Servo Drivers

Yaskawa servo driver with high positioning accuracy, good drive rigidity and high speed stability, quick response, no overshoot,low speed high torque, strong overload capacity, High reliability and good working stability.

Taiwan HIWIN linear guide rail and Germany TBI ballscrew driving system

Taiwan HIWIN Linear Guide Rail and Germany TBI Ballscrew Driving System

World famous guide rail and ballscrew ensure machine high working efficiency and precision.

Top Brand Reci CO2 Laser Power

Top Brand Reci CO2 Laser Power

Reci laser tube with longer working life, improve working efficiency, save your use-cost and maintenance cost.

Top Brand Raycus 500w Laser Source

Top Brand Raycus 500w Laser Source

Raycus laser source with higher electro-optical conversion efficiency, better beam quality, less maintenance cost.

Saw Blade Working Platform

Saw Blade Working Platform

This working table can keep workpiece fix well and make cutting finish better.

Working Samples

Metal and Nonmetal Laser Cutting Machine Working Samples
