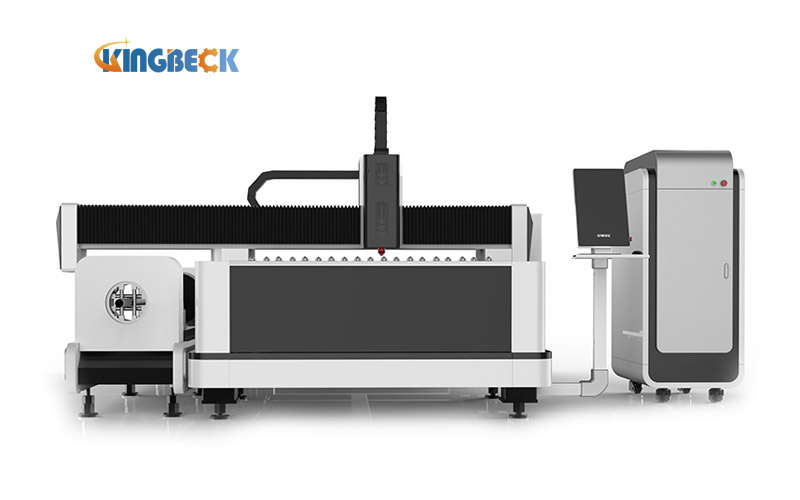

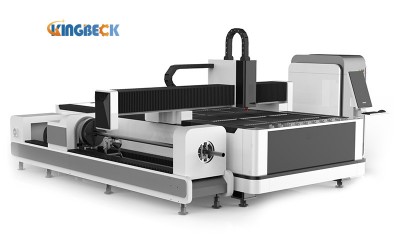

Metal Sheet and Pipe Cutting Fiber Laser Cutter
Metal Sheet and Pipe Cutting Fiber Laser Cutter

Features

  1. Fiber laser cutter with the rotary and plate working process combination save cost and space.
  2. A “clean cut” surface quality is obtained.
  3. Reflective materials like aluminium,copper and brass can be cut with ease.
  4. Available for different diameter and length tubes from 20mm-200mm.
  5. Little to maintenance costs.
  6. Consumable part cost is low. The only parts that need to be changed are nozzles, ceramics and protection glasses over long periods. There are no other consumable costs.
  7. Resonator life is over 100,000 working hours.

Parameters

ModelKB-3015
laser power500w, 750w, 1000w, 2000w (optional)
Laser sourceImport original fiber laser IPG
Cutting area3000mm*1500mm
Whole machine size5540*3920*1954mm
Cutting thickness0.1mm-18mm
Maximum speed120 m/min
Rotary working diameter20-200mm
Rotary working length3m/6m
Resetting positioning accuracy±0.02mm
Power supply380V±10%/20A, 50 Hz
Control systemCypcut CNC Control System
Driving systemYasukawa servo system
TransmissionDouble driver rack gear
Power consumption< 10kw
Graphic format supportedBMP,PLT, DST, DXF, and AI
TableFixed knife strip
Cooling modewater-cooling and protection system
Compatible softwareCorelDraw  AutoCAD  Photoshop
Net Weight5000kg

Application

  • Suitable industries
    It is suitable for aerospace technology, aircraft manufacturing, rocket manufacturing, robot manufacturing, elevator manufacturing, ship manufacturing, sheet metal cutting, kitchen furniture, electronic components, automotive parts, cooling, ventilation pipes, signs, metal and other metal parts processing industry.
  • Suitable materials
    It is mainly used for cutting carbon steel, silicon steel, stainless steel, aluminum alloy, titanium alloy, galvanized steel sheet, pickling board, aluminum zinc plate, copper and many kinds of metal materials cutting.

Machine Main Parts

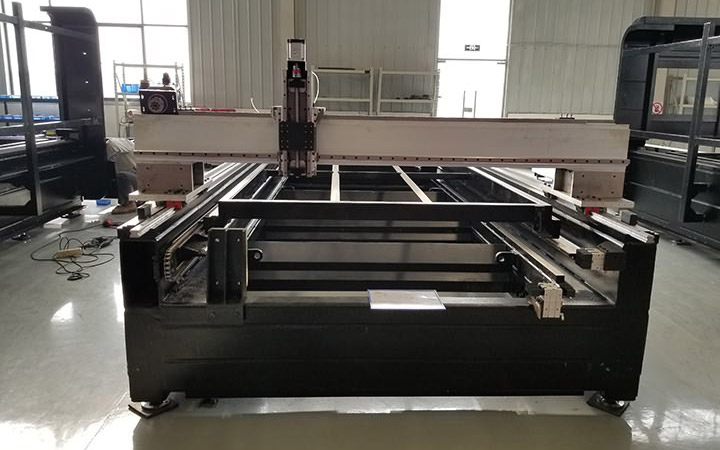

Machine Bed

Machine Bed

machine bed adopts exclusive annealing processing with high-temperature NC electric resistance furnace.

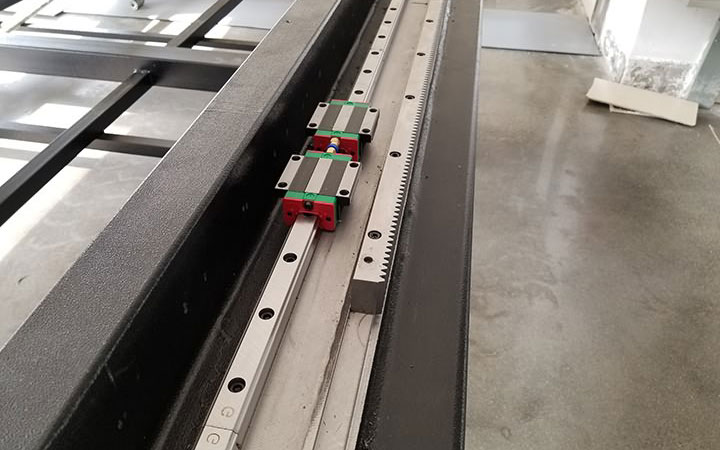

Germany Helical Gear Rack

Germany Helical Gear Rack

Germany helical gear rack and Taiwan HIWIN guide rail.

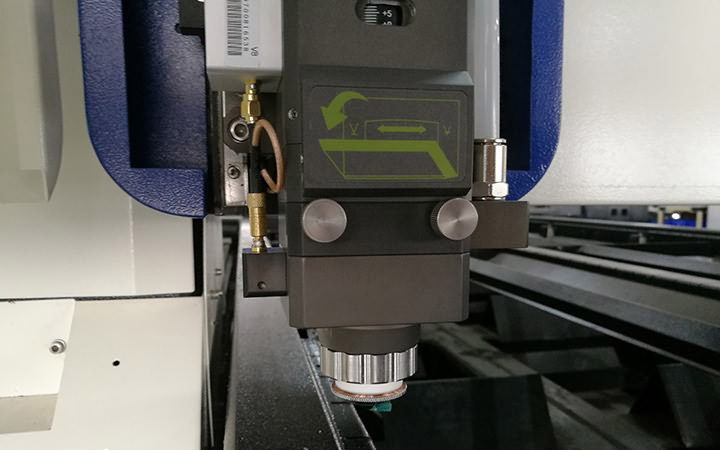

Laser Head with Auto Focusing Height Follower

Laser Head with Auto Focusing Height Follower

To ensure the constant same distance between the head and cutting material.

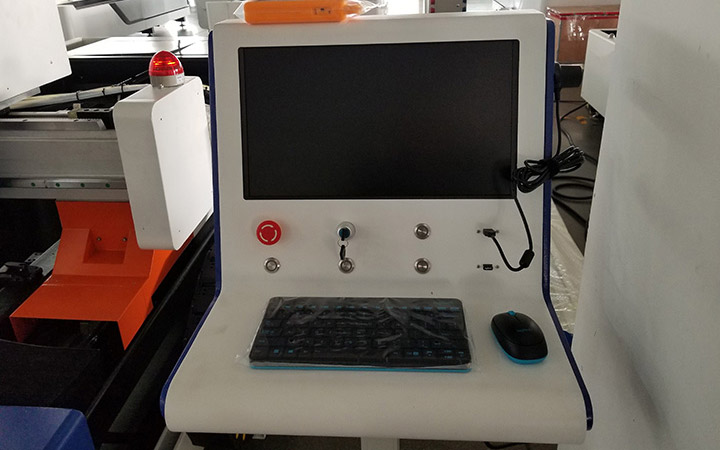

Cypcut Control System

Cypcut Control System

Cypcut Control system and software with English language, applicable insert files with DXF Or AI format.

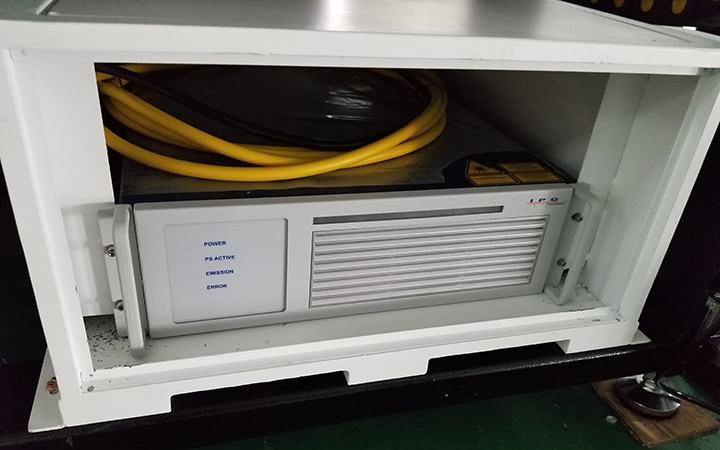

Imported Germany IPG 500w Laser Generator

Imported Germany IPG 500w Laser Generator

More stable, higher precision, energy saving, longer lifetime.

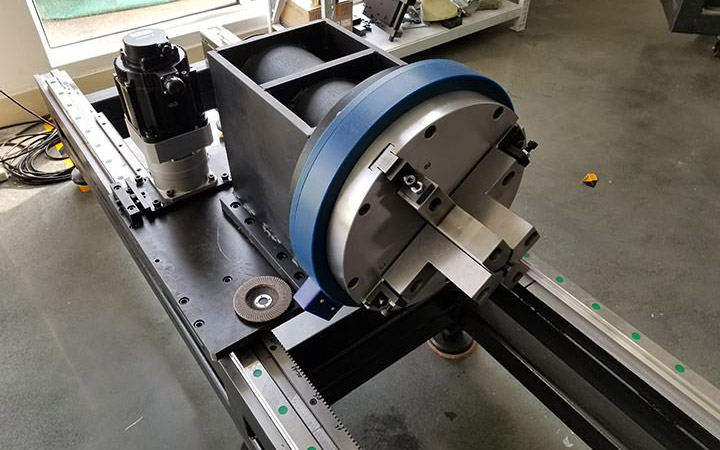

Electric-drive Motor

Electric-drive Motor

Electric-drive motor in rotary device adjust speed freely. Easy-work, lower noisy, high rotary speed, high accuracy.

Working Samples

Metal Sheet and Pipe Cutting Fiber Laser Cutter Working Samples

Metal Sheet and Pipe Cutting Video
