Portable Fiber Laser Marking Machine
Portable Fiber Laser Marking Machine

Fiber laser marking machine is specially developed for industrial metal material marking.

Machine Features

1. The flxible design with maintenance-free laser source guarantees constantly precise marking on the work piece.

2. Long service life with minimum maintenance. The most important components are sealed and protected against dust and dirt. Air cooling and free maintenance laser source ensure long working life. The marking laser no need any consumables , more economic and efficient.

3. Laser marking at maximum marking speed. Fiber laser marking machine is an industrial galvo marking laser working at outstanding marking speed. With the integrated galvo technology, you can mark electronic components and products in only a few seconds. The digitally controlled writing heads ensure pin sharp marking. Being a fiber laser, it is especially well suited for laser marking and labeling plastics and metals.

4. Integration into existing processes and systems. Using the “EzCad” marking software, you can reproduce all work steps, from data import and serialization through bar code generation. The graphical user interface of the EzCad software can be customized upon to your requirement and can be configured for individual users.

Machine Parameters

Laser Power30W
Laser Wavelength1064nm
Marking Range100*100mm/200*200mm/300*300mm
Minimum Line Width0.02mm
Minimum Character0.15mm
Marking Depth0.2 ~1.5mm
Engraving Line Speed≤7000mm/s
Repeatability Accuracy±0.001mm
Beam QualityM2:1.2~1.8
Marking FormatGraphics, Text, Bar Codes, Two-dimensional Code, Automatically
Marking the Date,Batchnumber,Serialnumber,Frequency,etc.
Graphic Format Supportedbmp,jpg,gif,tga,png,tif,ai,dxf,dst,plt,etc.
Working Voltage220V±10%/50Hz/4A
Unit Power<0.5kw
Use of the EnvironmentClean and Dust Free or Dust less
Working Condition:Humidity5%-75%,Free of Condensed Water
Laser Module Life>100000 hours

Difference of 20w 30w 50w Laser Power

1. 20w fiber laser marking machine
The most hot selling system by lowest price advantage.
Especially on plastic and hard metals, it occurs perfect results.
Automotive, packing, kitchenware equipment, hand tools sectors are main ways preferred on F20

2. 30w fiber laser marking machine
Suitable for job shops and people who needs more power.
One upper level then marking towards cutting.
Especially for cutting, this is the first machine fits your requirement to cut.

3. 50w fiber laser marking machine
Do deep engraving, micro cutting, marking and 3D engraving perfect.
Mostly preferred by jewelry sector, F 50 creates 40% more effective results according to its competitors. One of the fastest model in market.

Machine Parts

Field Lens

Field Lens

Scan Head

Field Lens

Raycus Fiber Laser Generator

Field Lens

Aluminum alloy up-down table

Aluminum alloy up-down table adjustable for different workpiece size

Independent Switch

Independent switch, easy to learn and more convenient

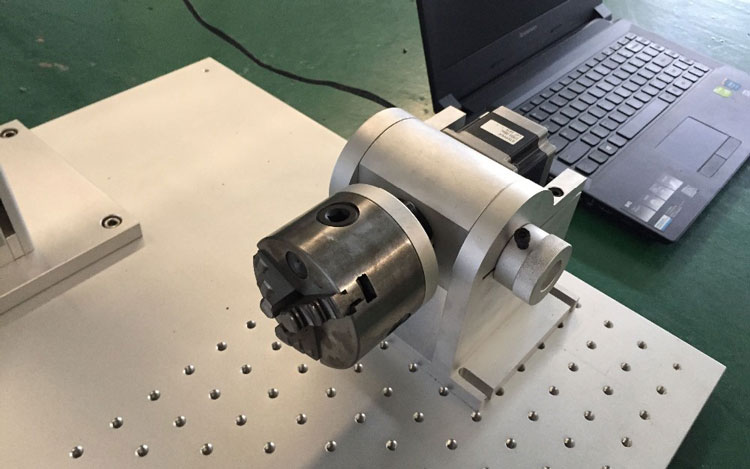

Rotary Device

Rotary device for cylinder workpiece marking

Working Samples

Portable Fiber Laser Marking Machine Working SamplesPortable Fiber Laser Marking Machine Working Samples
