Project Description
Machine Photo
Machine Features
1. Laser source is small and light, which helps to move easily.
2. Swiss RayTools Cutting Head, Special Fiber Laser Cutting Head and Automatic Following System equipped with Germany fiber laser cutting head and untouched automatic following system.
3. German Neugart reducer as the key part of the drive axle transmission, plays an important role in reducing speed and increasing torque.
4. X, Y and Z axis adopt Japan Yaskawa servo motor with high precision and speed. Large torque and inertia can endure the stability and durability.
5. Professional Cypcut operating system and powerful Shanghai Cypcut fiber cutting system based on windows operating system, easy operation.
Machine Parameters
| Model | KB-FL1390 | KB-FL6040 |
| Working Area | 1300*900mm | 600*400mm |
| Laser source | Raycus or IPG | |
| Laser Power | 300w 500w 700w 1000w 2000w | |
| Max.Cutting Speed | 25m/min | |
| Max.Moving Speed | 60m/min | |
| Positioning Accuracy | 0.03mm | |
| Repeatability Accuracy | 0.02mm | |
| Min.Line Width | 0.1mm | |
| Control system | Cypcut | |
| Power Supply | 380V/50HZ | |
| Cooling Mode | Water cooling chiller | |
| Graphic format supported | BMP,PLT, DST, DXF, and AI | |
| Compatible software | CorelDraw AutoCAD Photoshop | |
Machine Main Parts
IPad Touching Screen

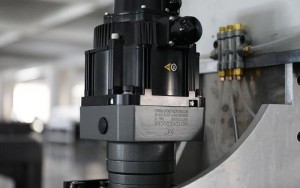

Japan YASKAWA Servo Motor
Japan YASKAWA Driver
Tongfei Water Cooling System
Germany ATLANTA Racks & Pinion
Raytools Laser Head
Working Samples
